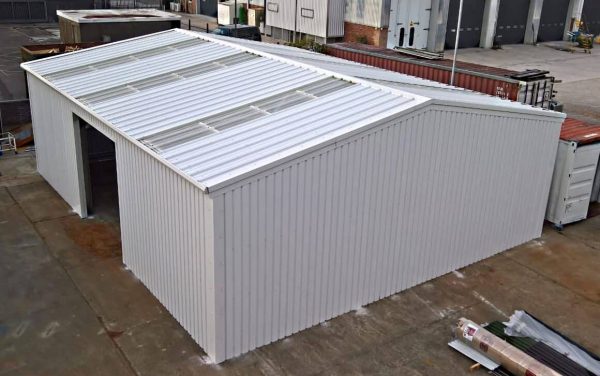

Insulated Building With 1x Roller Door And 1x PA Door
15m x 15m x 4.8m to eaves with a 10 degrees pitch roof
1x 4000mm x 4200mm Chain Operated Heavy Duty Class 5 Roller Door
1x 12 Point Lock And Secure Personnel Access Door
35mm Box Profile Wall Cladding, 40mm Composite. Plastisol coated steel sheeting.
35mm Box Profile Roof Cladding, 40mm Composite. Plastisol coated steel sheeting. 10 degrees pitch with skylights.
Guttering & Downpipes – Galvanised Steel hot dipped in Plastisol coating.
All Base, Eaves & Ridge Fillers Included.
All necessary screws (coloured cap-less finishing screws), bolt sets, masonry anchors, screw caps, brackets required to erect this building are supplied.
Made from cold rolled Cee-section columns and rafters. All Purlins used are Top-hat sections.
All framework is hot dipped galvanised steel to BS EN 10346:2009 Fe E390G-Z275.
The sections are designed to BS EN 1993-1-3:2006 using a combination of rational analysis and component testing.
