Description
Building Description:

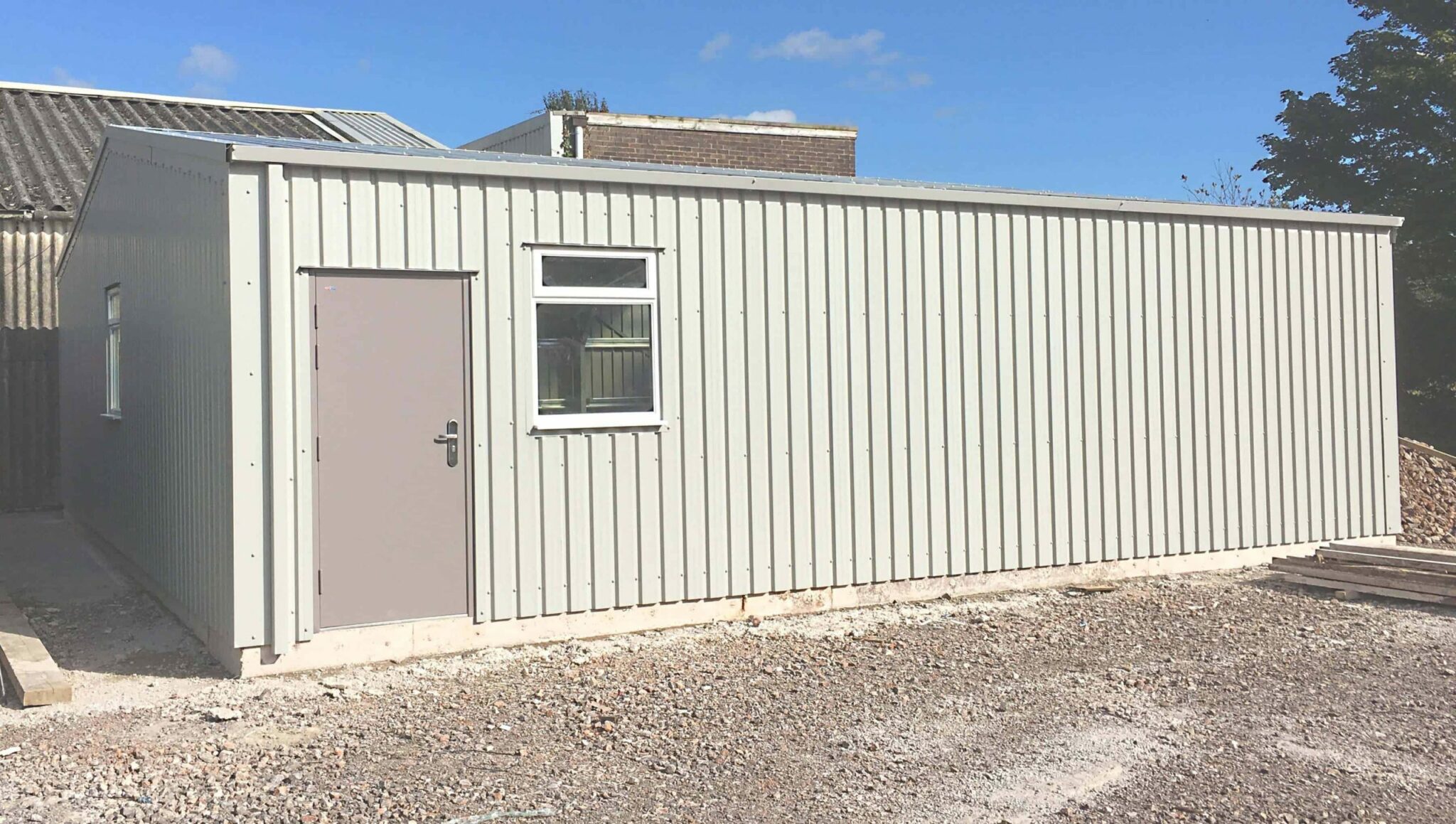

Single Skin Building with 1x PA Door & 2x Windows.
Dimensions:

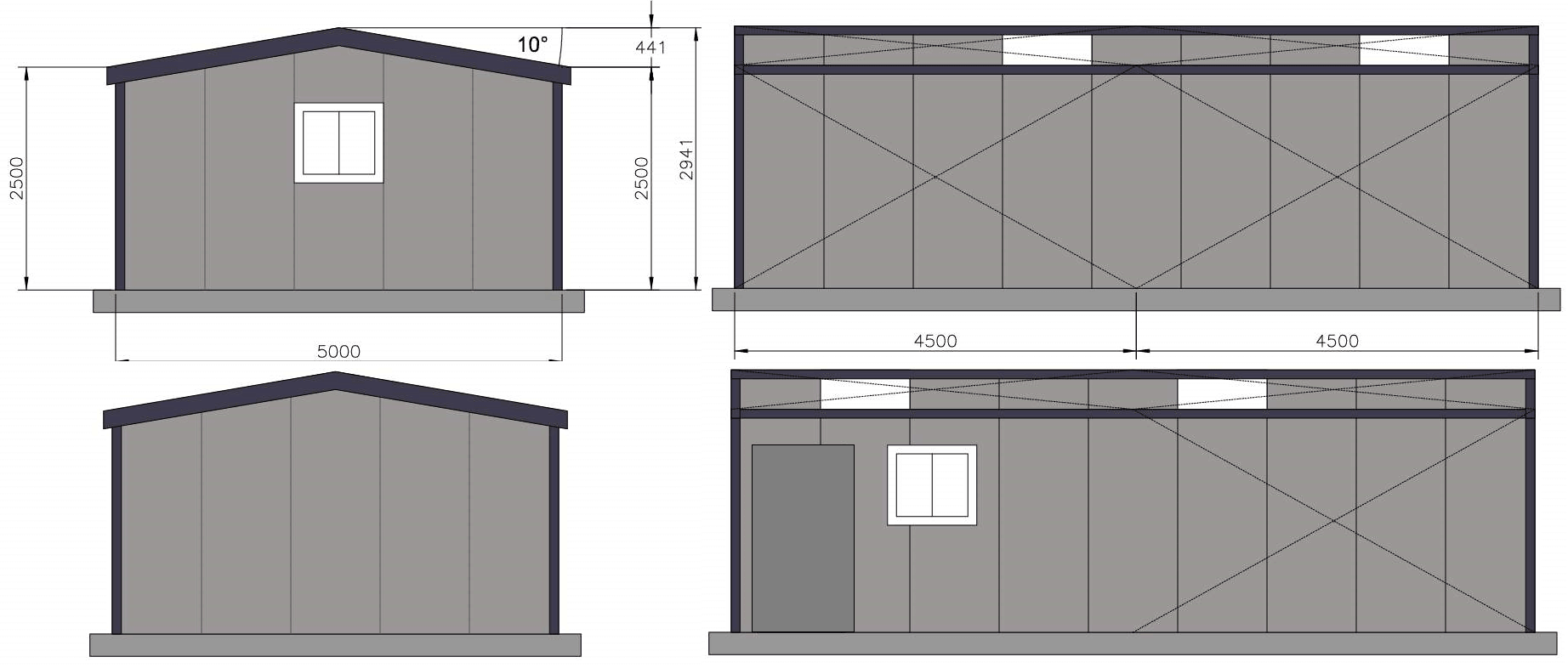

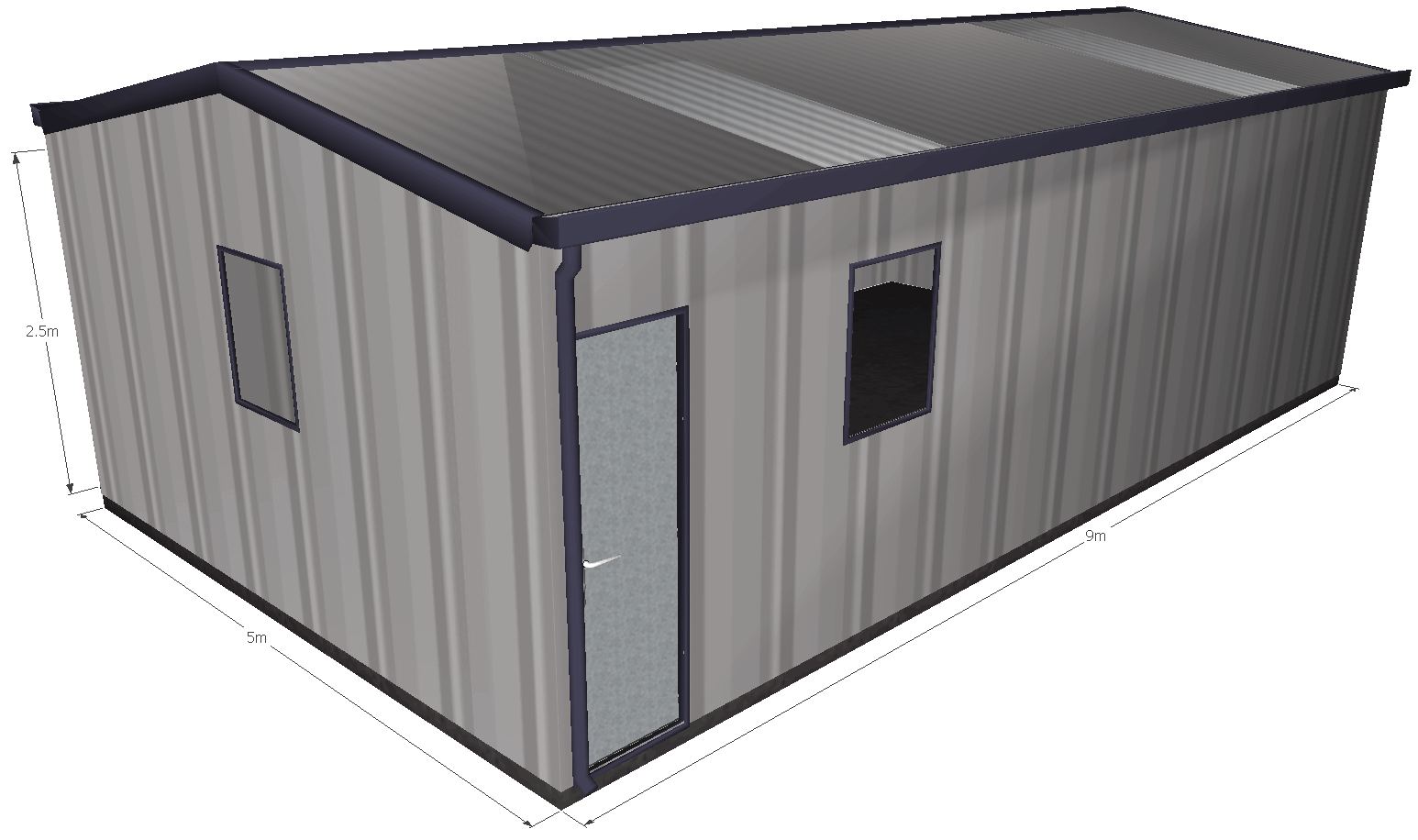

5m x 9m x 2.5m to eaves with a 10 degrees pitch roof
Doors:
1x 12 Point Locking Secure Personnel Access Door
2x 1000mm x 1000mm Clear Glass Windows White uPVC, all framing and flashings included
Wall Detail:
24mm Box Profile Wall Cladding, Single Skin. Plastisol coated steel sheeting.
Roof Detail:
30mm Box Profile Roof Cladding, Single Skin. Plastisol coated steel sheeting. 10 degrees pitch with anti-condensation barrier and skylights.
Rain Water:
Guttering & Downpipes – Galvanised Steel hot dipped in Plastisol coating.
All Base, Eaves & Ridge Fillers Included.
Fixings:
All necessary screws (coloured cap-less finishing screws), bolt sets, masonry anchors, screw caps, brackets required to erect this building are supplied.

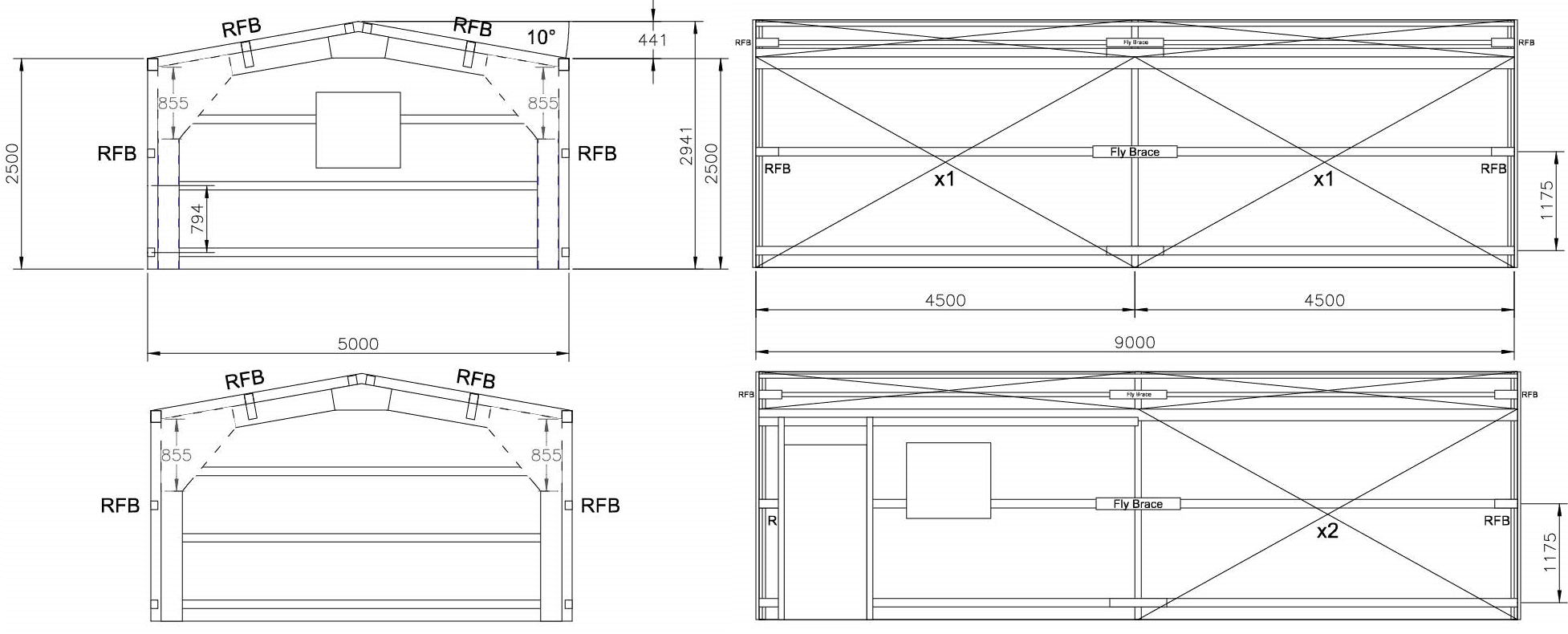

Framing:
Made from cold rolled Cee-section columns and rafters. All Purlins used are Top-hat sections.
All framework is hot dipped galvanised steel to BS EN 10346:2009 Fe E390G-Z275.
The sections are designed to BS EN 1993-1-3:2006 using a combination of rational analysis and component testing.
