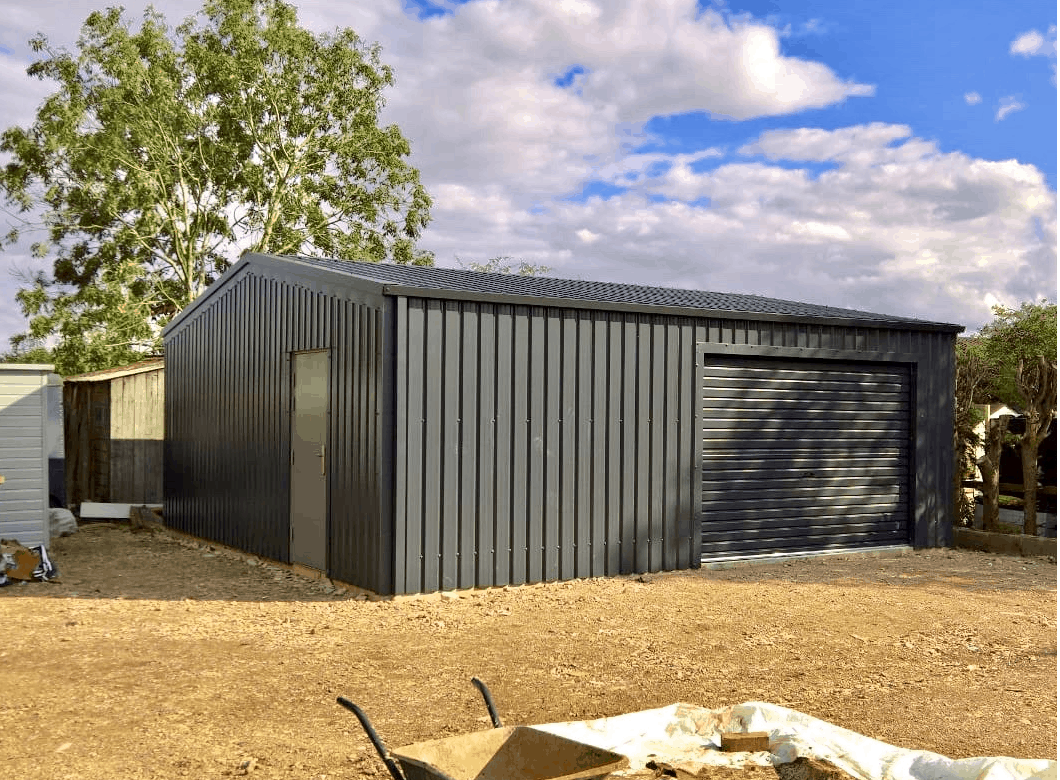

Single Skin Building with 1x Roller Door & 1x PA Door

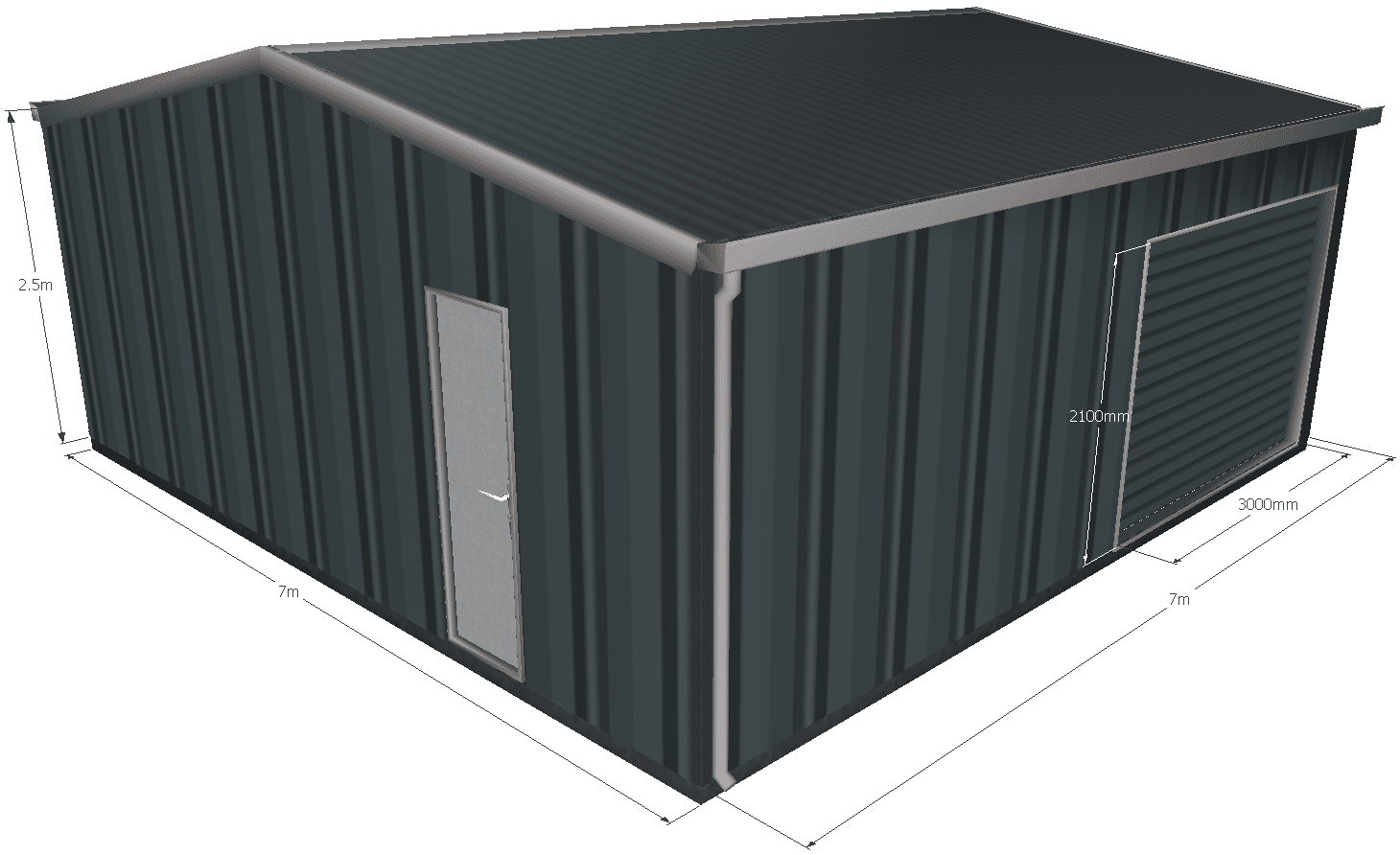

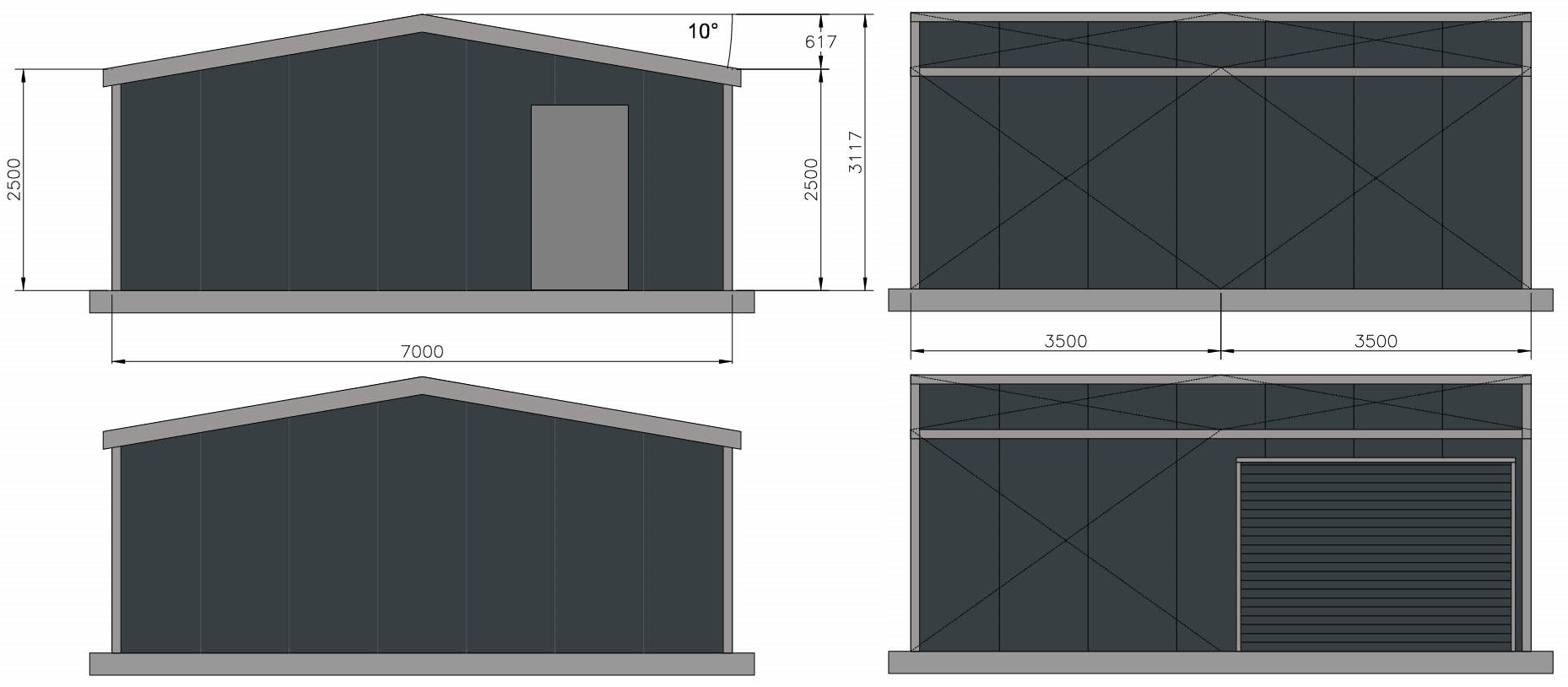

7m x 7m x 2.5m to eaves with a 10 degrees pitch roof
1x 3000mm x 2100mm Manually Operated Roller Door
1x 12 Point Locking Security Personnel Access Door
24mm Box Profile Wall Cladding, Single Skin. Plastisol coated steel sheeting.
30mm Box Profile Roof Cladding, Single Skin. Plastisol coated steel sheeting. 10 degrees pitch with anti-condensation barrier & skylights.
Guttering & Downpipes – Galvanised Steel hot dipped in Plastisol coating.
All Base, Eaves & Ridge Fillers Included.
All necessary screws (coloured cap-less finishing screws), bolt sets, masonry anchors, screw caps, brackets required to erect this building are supplied.

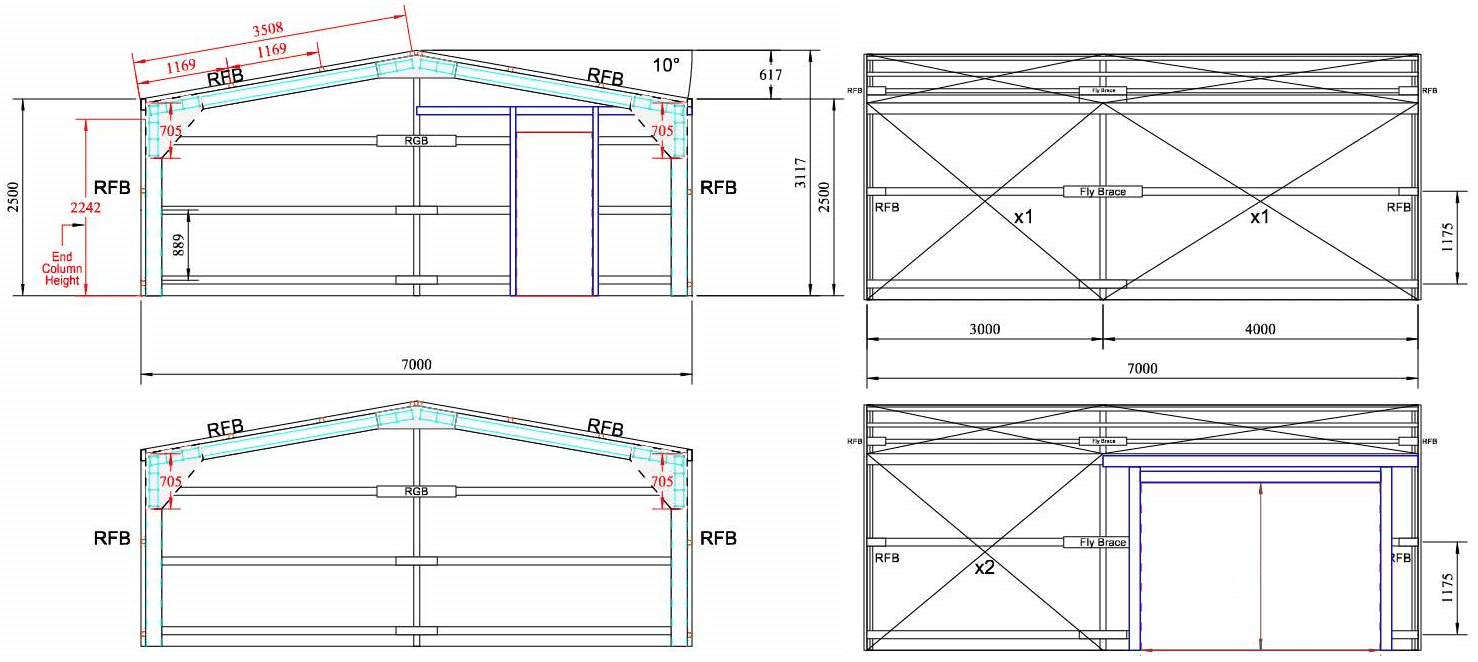

Made from cold rolled Cee-section columns and rafters. All Purlins used are Top-hat sections.
All framework is hot dipped galvanised steel to BS EN 10346:2009 Fe E390G-Z275.
The sections are designed to BS EN 1993-1-3:2006 using a combination of rational analysis and component testing.
